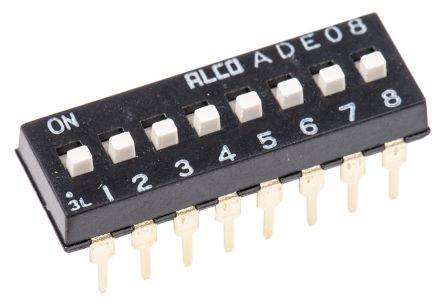

ADE0804 TE Connectivity DIP Switch - 商品詳細情報

ADE0804

TE Connectivity

DIP Switch

Search Alternative Products

Show Similar

ADE0804

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536509065

Search Alternative Products

Show Similar

Product Information

3D CAD情報
- SamacSys
- UltraLibrarian
Footprint/Symbol/3D CAD Information
PDN (EOL) Information

Specifications

Manufacturer name: TE Connectivity

Product name: ADE0804

Product classification: DIP Switch

Lifecycle Status: Active

RoHS: RoHS

Number of poles: 8

Series name: ADE

Rated current: 100mA

Rated Voltage(DC): 24V

Shape of the operation part: Raised Slide

Contact point finish: Gold Flash/Nickel

Height: 4.6mm

Length: 22.3mm

Maximum service temperature: 85°C

Minimum service temperature: -30°C

Rated power: 0.4VA

Width: 8.38mm

Circuit: SPST
