Growing Needs of BMS for High-Accuracy Monitoring of Battery Voltage,
Charge-Discharge Current, Temperature, Etc.
Global warming, air pollution and other environmental issues have accelerated the trend away from the internal combustion engine (ICE*) towards EV, PHEV, HEV and other environmentally conscious vehicles.
ABLIC’s lineup includes lithium-ion battery protection ICs suitable for voltage monitoring of any battery cell, battery monitoring ICs suitable for total voltage monitoring of battery cells, operational amplifiers suitable for monitoring charge-discharge current, intermittently operating convenience timer ICs suitable for reducing standby current or low current consumption power supply ICs. ABLIC has a host of products enabling selection of ICs ideal for 12V BMS.
*BMS: Battery Management System
*ICE: Internal Combustion Engine
ICs Ideal for 12V BMS <Recommended Product>
Click the product name (Blue Box) for more product information.
■【Lithium-ion Battery Protection IC S-19192 Series】
Ultra-Low Current Consumption
A Simple Configuration Capable of Standalone Monitoring Provided with a Self-diagnosis Function for Failure Detection
This is a 3 to 6-serial cell battery monitoring IC with
a standalone monitoring function and self-diagnosis (self-test) function.
Since the current consumption during operation is 18μA (max.), it can also be used in systems with strict standby current restrictions.
Overcharge detection voltage accuracy: 2.5 to 4.5V (±20mV)
Overdischarge detection voltage accuracy: 1.5 to 3.0V (±80mV)
| Series Name | ||
|---|---|---|
| S-19192 | Datasheet(PDF) | Buy Now |
■【High-accuracy Operational Amplifier S-19630A】
Low Offset Voltage 36V Operation
Contributing to High-Accuracy Current Sensors
A wide operating voltage range allows use of this IC in systems from 5V to high-voltage systems directly connected to battery.

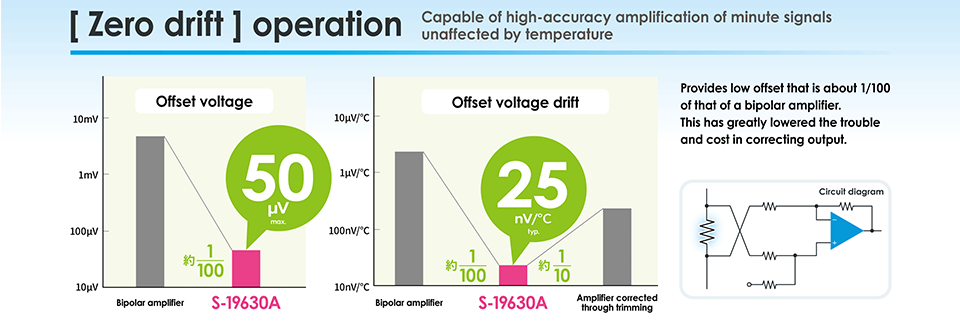

Low offset voltage enables high-accuracy current detection. Input Rail-to-Rail enables low-side and high-side current detection.
Operating voltage range: 4.0 V to 36 V / Low offset voltage: 50μV max. / Rail-to-Rail input and output
| Series Name | ||
|---|---|---|
| S-19630A | Datasheet(PDF) | Buy Now |
■【High-accuracy Operational Amplifier
S-19611A】
Low Offset Voltage
Low Voltage Operation
Contributing to High-Accuracy Current Sensors
Low offset voltage enables high-accuracy current detection. Input Rail-to-Rail enables low-side and high-side current detection.
Operating voltage range: 2.65 V to 5.5 V / Low offset voltage: 100μV max. / Rail-to-Rail input and output
| Series Name | ||
|---|---|---|
| S-19611A | Datasheet(PDF) | Buy Now |
■【Convenience Timer S-35720
A Series】
Ultra-Low Current Consumption
Alarm Interrupt Function
Intermittent Operation Greatly Reduces System Standby Current
This is a convenience timer with a hardware timer setting that allows the user to select alarm interrupt times using time setting pins. Thanks to its ultra-low current consumption of 0.2uA, this timer IC can replace the internal timer of a microcontroller (MCU) , which helps to greatly reduce standby current by operating the system intermittently.
Operating voltage range: 1.8 V to 5.5 V
| Series Name | ||
|---|---|---|
| S-35720 A | Datasheet(PDF) | Buy Now |
■【LDO Regulator S-19310 Series】
Ultra-Low Current Consumption
World’s Lowest Current Consumption Reduces Standby Current
This is an LDO regulator with a 36V input, 40mA output, an ultra-low current consumption of 2.2μA (typ.) and comes with a reset function for monitoring the output voltage of the internal LDO regulator. It can be used as a timer IC power supply to create an intermittently operating system with ultra-low current consumption.
Output voltage: 2.9V to 5.3V
| Series Name | ||
|---|---|---|
| S-19310 | Datasheet(PDF) | Buy Now |
■【Watchdog Timer S-19518/9 Series】
Ultra-Low Current Consumption
Single Chip IC for Supplying MCU Power, Monitoring Voltage and Operation
This is a window watchdog timer IC with a 36V input, 500mA output and reset and LDO regulator functions. Current consumption during operation is a mere 3.2uA and when the Enable (EN) pin turns off the power supply to the MCU, standby current is reduced to virtually zero.
| Series Name | ||
|---|---|---|
| S-19518（Output current: 250mA） | Datasheet(PDF) | Buy Now |
| S-19519（Output current: 500mA） | Datasheet(PDF) | Buy Now |
■【EEPROM S-25AxxxB Series】
Page Write Sequential Read
An IC Satisfying the Industry’s Highest Standards, Fully Operational up to +125℃, Data Can be Rewritten up to 300,000 Times and Retained for up to 50 Years
This is an 8K to 256Kbit SPI bus serial EEPROM. We provide a broad lineup of packages from 8-pin SOP, 8-pin TSSOP and 8-pin TMSOP.
| Series Name | ||
|---|---|---|
| S-25A080B（8K-bit） | Datasheet(PDF) | Buy Now |
| S-25A160B（16K-bit） | ||
| S-25A320B（32K-bit） | ||
| S-25A640B（64K-bit） | Datasheet(PDF) | Buy Now |
| S-25A128B（128K-bit） | Datasheet(PDF) | Buy Now |
| S-25A256B（256K-bit） | Datasheet(PDF) | Buy Now |
