Infineon’s XENSIV™ sensor is the industry’s

leading technology and is ideal

for high performance automotive,

industrial and consumer market applications

Details

Side view of innovative stack-mounted dual sensor technology and bonding wires

Dual sensor solution with two redundant sensors.
Using innovative stack mounting technology, the products of the angle sensor family integrate two sensors in a standard TDSO package, which is only 1mm thick and saves space. Package width and length are the same as conventional single sensor packages. The advantages compared to the general approach of sensors being arranged in parallels, are that the magnetic field on the sensor element is more uniform and that the footprint can be significantly smaller. This allows for low cost ferrite magnets to provide sufficient magnetic fields for the sensor, reducing valuable space and cost in applications where high functional safety is required.

Details

Side view of innovative stack-mounted dual sensor technology and bonding wires

The differential measurement method used with this TLI4970 sensor suppresses interference from external magnetic fields.

This allows the sensor to achieve an extremely low offset of only 25mA.

In conventional current measurement methods, measurement accuracy always depends on environmental conditions (e.g. temperature).

Infineon’s current sensors are more accurate than existing open-loop methods and comparable to closed loop systems. It offers more features such as high-speed overcurrent detection, programmable filters, and an extremely small footprint and low power consumption.

This sensor is extremely resistant to the effects of external magnetic fields due to stray magnetic field suppression and is also suitable for high-speed overcurrent detection in the unset state. This feature allows you to individually isolate the control units from the measurement path to protect the power load from damage.

Details

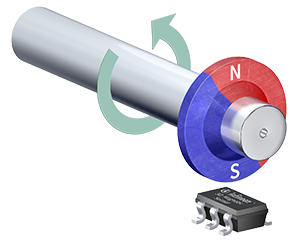

The TLE/TLI/TLV493D sensor combines low power consumption and 3-axis measurement in a small package.
Non-contact position sensing can be used in applications that use traditional mechanical or optical position sensing solutions.

The system size can be reduced, and magnetic threshold stability over temperature range provides a more accurate and robust solution for these applications.

Infineon’s sensors use a standard 2-wire digital I2C communication interface to enable bi-directional communication between the sensor and the microcontroller.

3D magnetic sensors are ideal for control devices, joysticks, and E-meters (anti-tampering function). It is also suitable for low power 3D automotive applications such as directional indicators and transmissions.

Details

Infineon’s dual backplate MEMS technology is based on a miniaturized symmetrical microphone design, similar as utilized in studio condenser microphones, and results in high linearity of the output signal within a dynamic range of 105dB.

The noise floor of the microphone is 25 dB[A] (69 dB[A] SNR), and it has a low distortion of less than 1% even at a sound pressure level of 128 dB SPL (AOP 130dB SPL). The flat frequency response (28Hz low frequency roll off) and tight manufacturing tolerances provide excellent phase matching that is important for multi-microphone (array) applications.

Details

In the home appliance field, electric rectification brushless DC drives are being used to reduce power consumption.

Infineon offers a wide range of position sensors, including Hall switches and angle sensors, to achieve reliable and energy-efficient motor commutation in brushless DC motor drives. Infineon’s sensors are compatible with applications such as smart meters, solar power generation inverter and solar power generation.

On downloading the application

Infineon’s barometric pressure sensor android app

Infineon’s mobile app is for Android smartphones and can be downloaded from the Android store. Using the mobile app instead of SES2G software, you can use Bluetooth to quickly evaluate sensor performance. The mobile app supports both Sensor Hub and nanoHUB.

Details

Infineon has an outstanding track record in the automotive sector. More than 3 billion of Infineon’s integrated magnetic sensors have been integrated into cars around the world, delivering high reliability in the following areas:

• Safety related application such as ABS (Antilock Braking Systems)
• Applications in extremely harsh environments such as engines and transmissions
• Similar applications in the industrial sector

24GHz radar application for industrial/home applications
